INNO-PCL-780

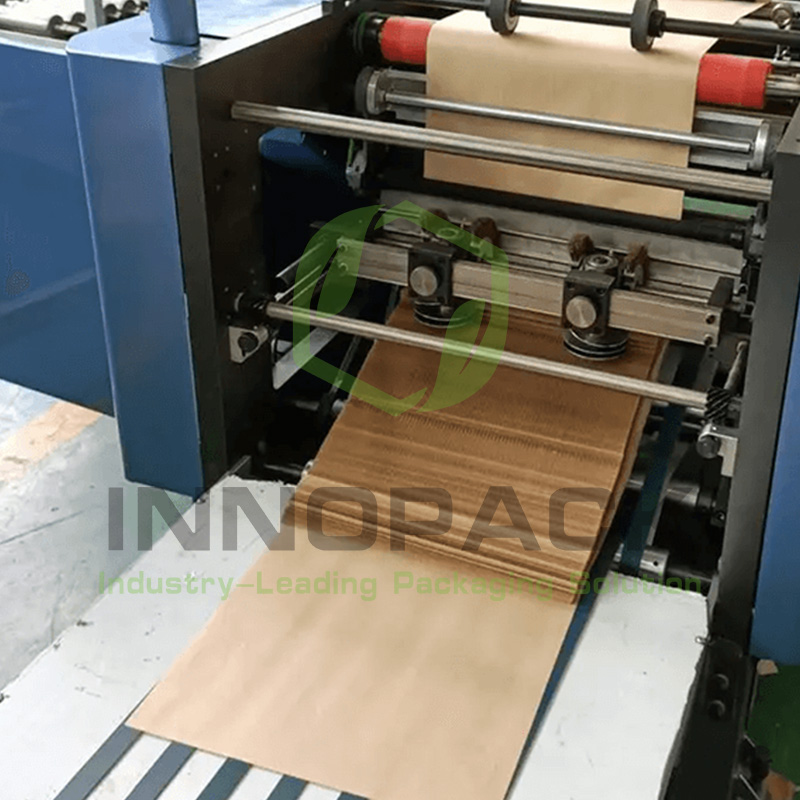

INNOPACK paper fanfolding machine. Our team of specialists creates premium paper folding machines with robust, compact designs that are humidity-resistant and simple to use.The benefits and capabilities of paper folders today go beyond the fold. Folding solutions can lead to slitting, batching, perforating, scoring, gluing and other finishing options. The right machine brings with it increased production efficiency, improved quality, expanded job opportunities and decreased overall costs.

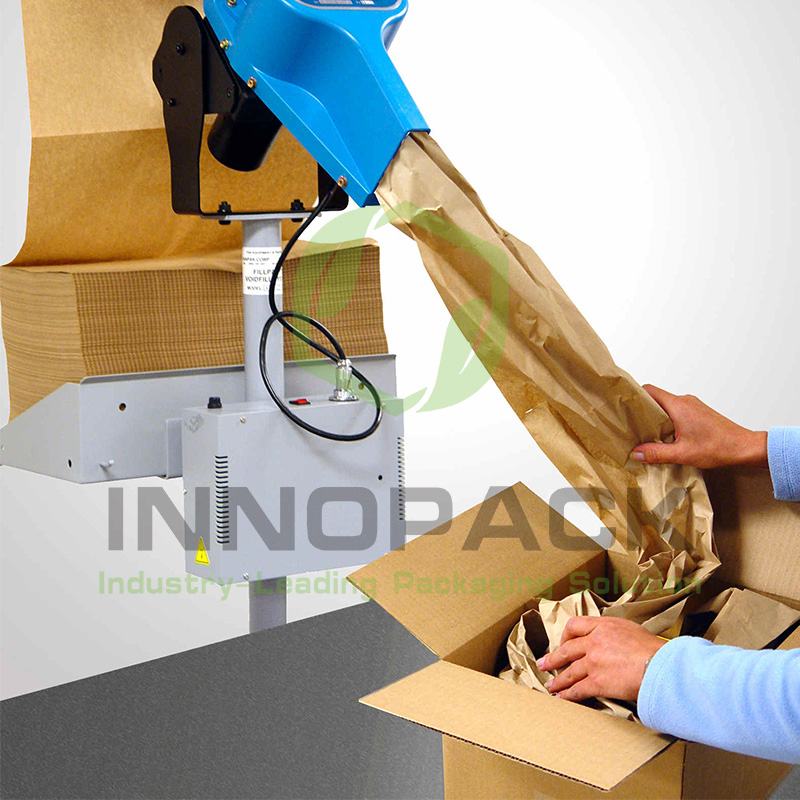

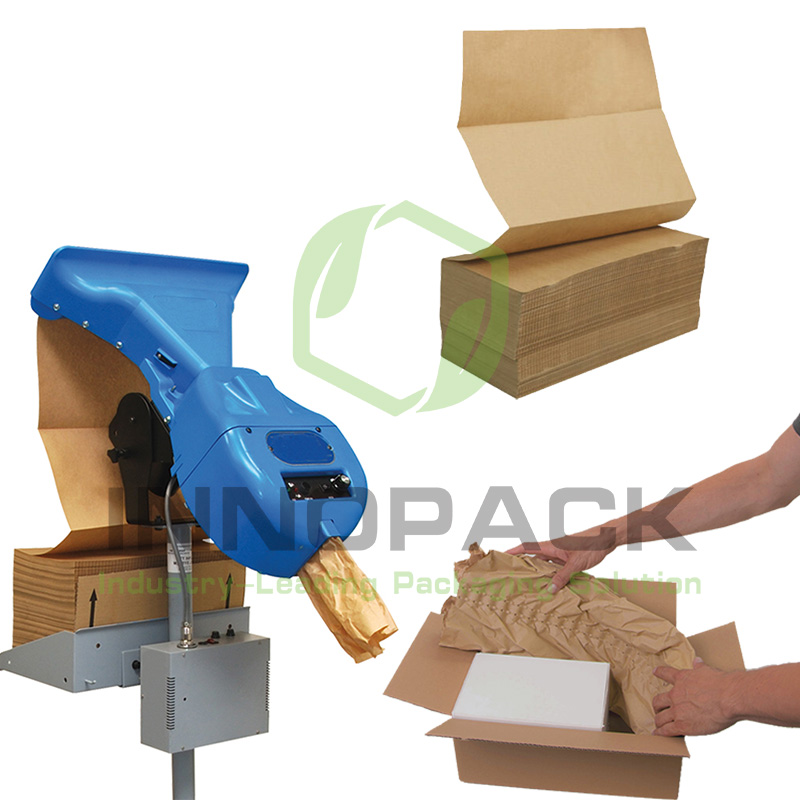

The automatic paper folding device transforms paper rolls into bundles of paper packs, subsequently utilizing the paper void filling system to create paper cushions that serve functions such as filling, wrapping, padding, and bracing. The fanfold paper packs offer an environmentally friendly substitute for plastic bubble wrap, being biodegradable, recyclable, compostable, and reusable. They have a minimal environmental footprint and serve as an expandable paper wrap alternative to plastic bubble wrap. Description of Automatic Fanfold Paper Folding Device Cushioning is essential for safeguarding delicate items during transit. Packages are frequently treated with little regard during shipping, necessitating measures to avert damage. Cushioning effectively manages shocks and vibrations, greatly decreasing the likelihood of broken contents and subsequent returns. Our industrial fanfold paper folding device can assist you in reducing labor costs through its high efficiency.
| 01 | Model number | PCL-780 |
| 02 | Web working width | 780mm |
| 03 | Maximum unwinding diameter | 1000mm |
| 04 | Maximum roll weight | 1000Kgs |
| 05 | Running speed | 5-300m/min |
| 06 | Fold size | 7.25-15 inches |
| 07 | Machine weight | 5000kgs |
| 08 | Machine size | 6000mm*1650mm*1700mm |
| 09 | Power supply | 380V 3Phase 5 wires |
| 10 | Main motor | 22KW |
| 11 | Paper loading system | Automatic hydraulic loading |
| 12 | Unwinding shaft | 3 inch inflatable air shaft |
| 13 | Switch | Siemens |

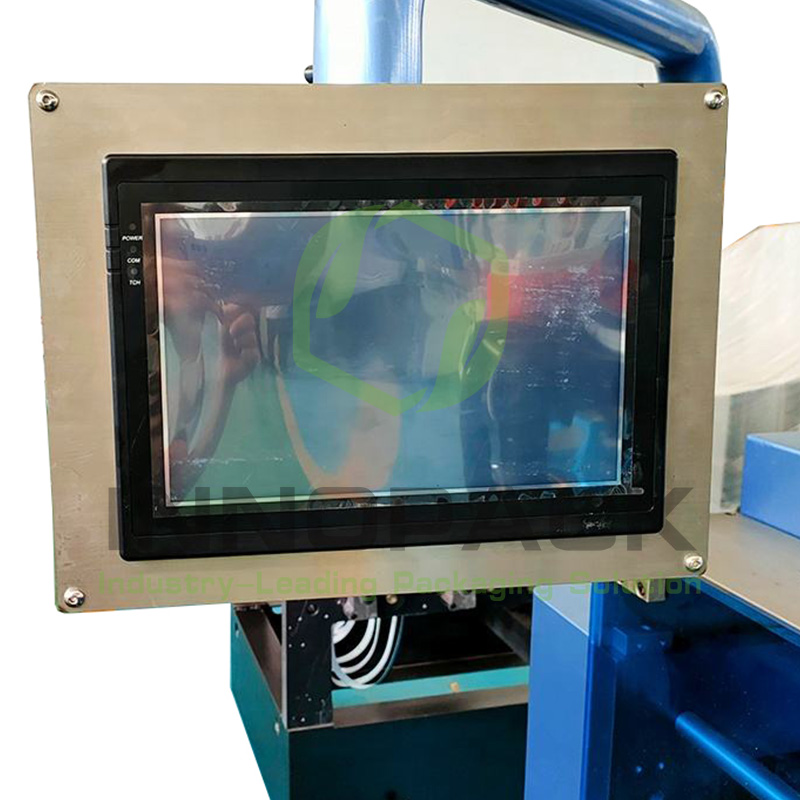

| 14 | Touch screen | Mikom |
| 15 | PLC | Mikom |
| 16 | Electrical | Mikom |
| 17 | Tension control | Wenew |
| 18 | Web guide device | Dongdeng |
| 19 | Touch screen fault alarm device | 1 set |
| 20 | Cross rolling line device | 1 set(optional) |
| 21 | Bearing | NSK(import) |
| 22 | Conveyor belt | Nita(import) |
| 23 | Lubrication method | Automatic oiling |

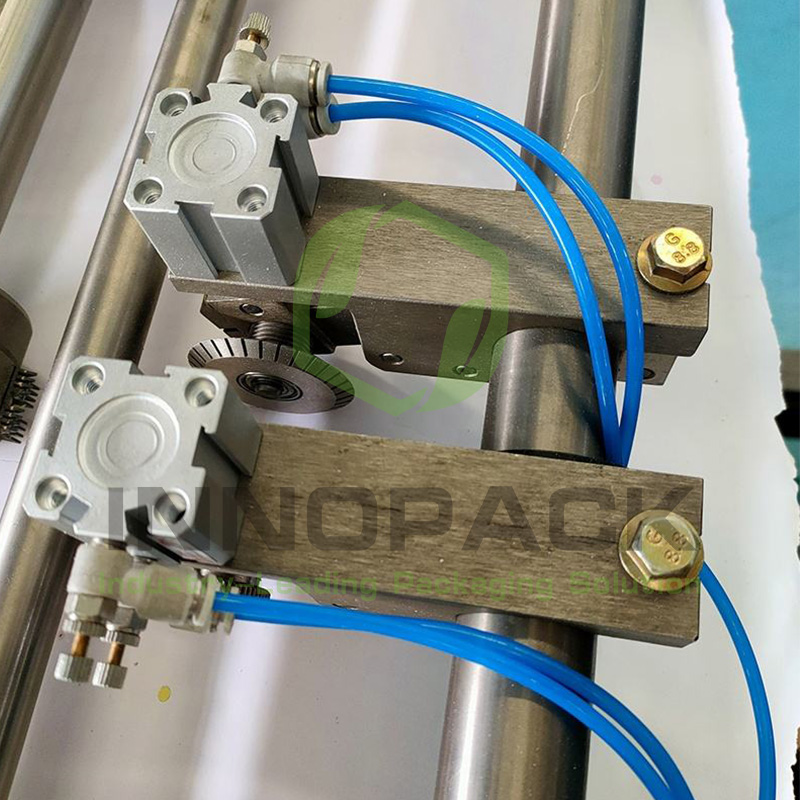

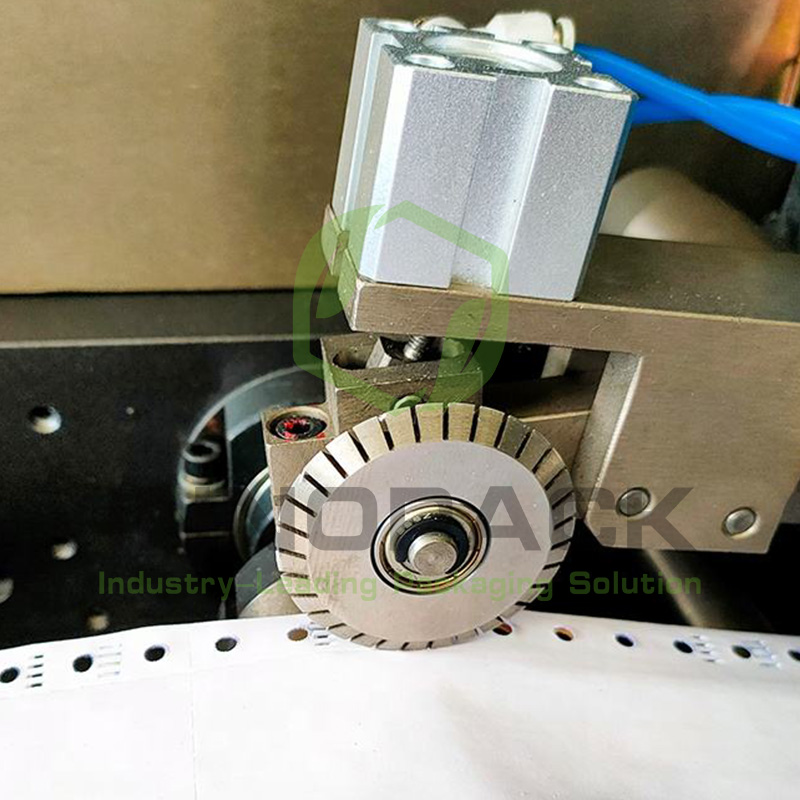

| 24 | Slitting device | 1 set |
| 25 | Paper output mode | Electric machinery |
| 26 | Waste discharge mode | Air blower |
| 27 | Main driving part | High precision gear |
| 28 | Wallboard | 45mm thick Overall |
| 29 | Whole machine | Baking varnish |
INNO-PCL-1200/1500H Rapid 3 in 1 Padded Mailer Device This machine is engineered for maximum efficiency and accuracy, ensuring it elevates your packaging abilities to an entirely new standard. Discover the next generation of e-commerce packaging now. Crafted to create honeycomb, embossed, and corrugated paper padded mailers with remarkable speed and precision, this device meets the increasing need for eco-friendly packaging within the e-commerce sector.
INNO-FCL-400-2A One of the most reputable and trustworthy suppliers of stretch film machines, air bubble bag producing equipment, and LDPE and LLDPE air bubble machines is Innopack. With years of extensive experience in the field, we are the fastest-growing company in Asia and specialize in creating a wide range of customized air bubble film machines for the manufacturing of 2–8 layers of air bubble film.
INNO-PCL-1200/1500H A machine able to evolve according to the specific needs of customers and designed to maximize production. The deep experience of over 15 years in the packaging machinery industry has allowed us to create a paper bag making machine among the most functional on the market.
INNO-FCL-400-2A INNOPACK introduces Paper Bubble Machine, mainly used to produce Inflatable bubble paper rolls. The bubble paper produced by this machine can be used to replace the plastic bubble wrap in packaging. It is 100% recyclable and uses degradable stretchable kraft paper as the main material.
INNO-FCL-1200 The Air Column LDPE and LLDPE bag Making Machine is a fully automated device for producing air column bag packaging materials. Constructed from multi-layer co-xtruded film, air column bags are a novel type of cushioning packing material that, when inflated, can successfully shield goods from impact, extrusion, and vibration while in transit.
INNO-FCL-200-2 The Air Column LDPE and LLDPE Film Making Machine is a fully automated device for producing air column bag packaging materials. Constructed from multi-layer co-extruded film, air column bags are a novel type of cushioning packing material that, when inflated, can successfully shield goods from impact, extrusion, and vibration while in transit.
INNO-FCL-200-2 An entirely automated device for creating air column bag packaging materials is the Air Column Bag Film Making Machine.Made of multi-layer co-extruded film, Air Column Bags are a novel kind of cushioning packing material that, when inflated, create independent air columns that can successfully shield goods from impact, extrusion, and vibration while in transit.
