INNO-PCL-1200/1500H
Rapid 3 in 1 Padded Mailer Device
This machine is engineered for maximum efficiency and accuracy, ensuring it elevates your packaging abilities to an entirely new standard. Discover the next generation of e-commerce packaging now. Crafted to create honeycomb, embossed, and corrugated paper padded mailers with remarkable speed and precision, this device meets the increasing need for eco-friendly packaging within the e-commerce sector.
Presenting our state-of-the-art padded mailer machines, the ideal solution for producing environmentally friendly and economical packaging. Engineered to manufacture honeycomb, embossed, and corrugated paper padded mailers with remarkable speed and accuracy, this machine addresses the increasing need for sustainable packaging in the e-commerce sector. Utilizing advanced automation technology, it guarantees high productivity and dependability, making it a vital tool for businesses focused on minimizing their ecological footprint while upholding superior packaging quality. Three Variants of the Machine After years of innovative advancements and the application of leading-edge technology, we have broadened our product range to feature machines that can create three unique types of padded mailers: honeycomb paper, embossed paper, and corrugated paper. Additionally, these machines can produce mailers using a combination of these materials, offering flexibility to cater to various packaging needs. This versatility allows businesses to select the most suitable material for their particular requirements, whether they prioritize enhanced cushioning, robustness, or visual appeal. Automation Our machines come equipped with sophisticated servo motors for precise movements and smart software to manage the calculated feeding and pulling of honeycomb paper into the void fill layer. Moreover, the built-in computer automatically regulates the paper tension to minimize breaks. The processes of loading and unloading paper are also automated. The quantity of bags produced is counted automatically, simplifying the packaging process. Speed These machines can manufacture large-sized padded mailers, such as 600mmx500mm+50mm, at an impressive rate of 45 pieces per minute and can double output with smaller bags by producing two bags simultaneously side by side. Double Sealing Strips and Tearing Tape We can incorporate an extra sealing strip and tearing tape on the flap for quick returns.

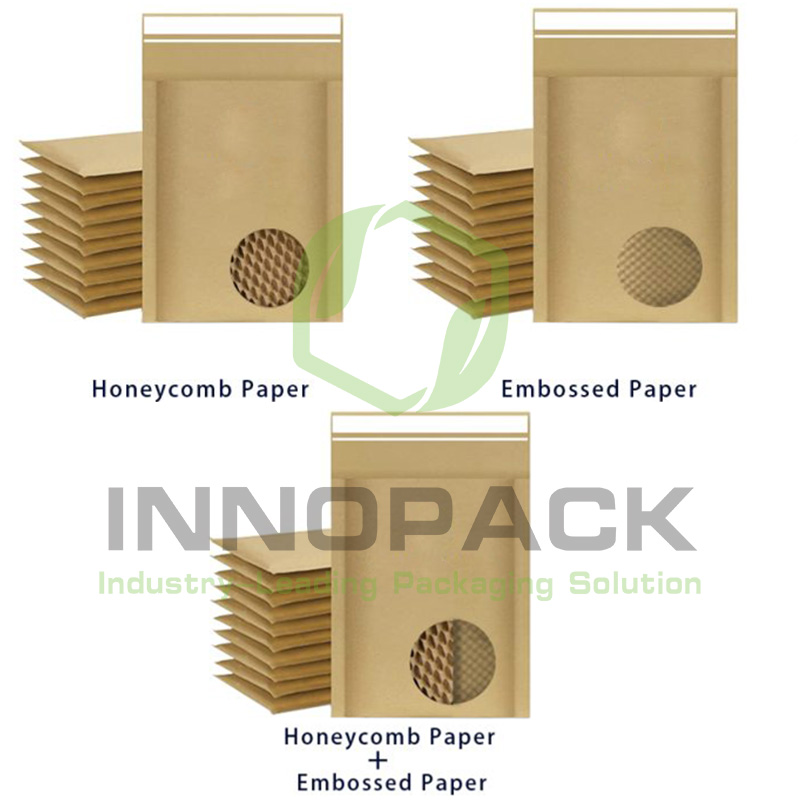

This machine can make the following 3 types of padded mailers:
Honeycomb Padded Mailer
Embossed Paper Padded Mailer
Corrugated Paper Padded Mailer
| Model No.: | INNO-PCL-1200/1500H | |||
| Material: | Kraft Paper ,Honeycomb Paper | |||
| Unwinding Width | ≦1200 mm | Unwinding Diameter | ≦1200 mm | |
| Speed of Making Bag | 60-150 units /min | |||
| Machine Speed | 60 m /min | |||
| Bag Width | ≦700 mm | Bag Length | ≦550 mm | |
| Unwinding Part | Shaftless pneumatic Cone Jacking Device | |||
| Voltage of Power Supply | 22V-380V,50HZ | |||
| Total Power | 28 KW | |||
| Machine Weight | 15.6 T | |||
| Appearance Color of Machine | White Plus Gray＆Yellow | |||
