INNO-FCL-400-2A
INNOPACK introduces Paper Bubble Machine, mainly used to produce Inflatable bubble paper rolls. The bubble paper produced by this machine can be used to replace the plastic bubble wrap in packaging. It is 100% recyclable and uses degradable stretchable kraft paper as the main material.
Rolls of inflatable bubble paper with different widths can be produced using this equipment.With its easy-to-use setup features and speed adjustment capabilities, the machine can freely manage the length of the paper roll.Ideal for home offices, small warehouses, etc. Make a roll of bubble paper and start using it right away.Its modest size, ease of use, and lack of space make it suitable for a variety of settings, including offices, chain stores, production lines, small batch distribution, express delivery bases, etc.
The purpose of the paper inflatable bubble bag machine is to cross-cut a high efficiency production line, seal the air channel, and seal the film side. The machine is a flexible addition to any production facility because it works perfectly with PE coextrusion packaging films. The finished product is sophisticated, visually appealing, and appropriate for packaging bags, electronics, shredded goods, and other objects that need a center fill. For businesses that need to produce air bubble film quickly and effectively, our fully automated air bubble film paper bag maker is the ideal answer. These devices create high-quality air bubble film at high production rates in a mass manufacturing setting.
1. A frequency converter with a broad frequency range that can provide stepless speed change controls the entire production line. Productivity is further increased by separate release and pick-up motors.
2. To facilitate product loading and unloading, the high-speed inflatable packaging film bubble cushion air bag packaging machine uses an air shaft in the unwinding and unwinding section.

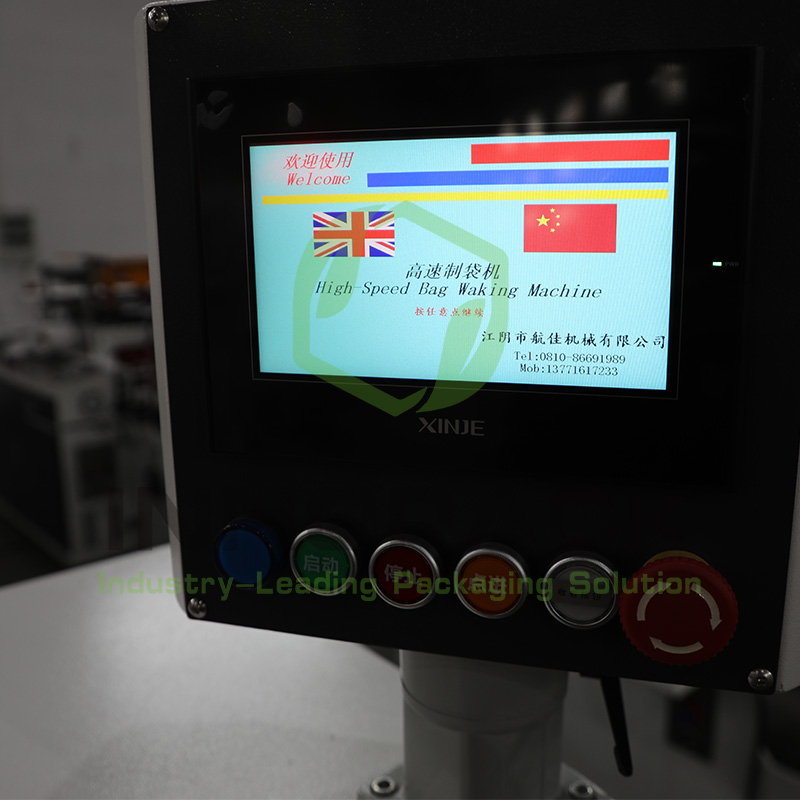

3. To attain maximum efficiency, the machine incorporates automated homing, alarm, and stop features.
4. To guarantee the consistency of the film, the paper air bubble film side sealing bag manufacturing machine has an automatic EPC device in the unwinding section.
5. To guarantee steady unwinding and continuous film discharge, a high-function potential sensor is employed.
6. To cut down on noise and increase stability and accuracy, the paper bubble film bag machine uses a grating device that integrates the brake and motor reducer into one unit.
7. To make the film smoother and tighter, the factory direct-selling automatic air bubble cushion protection film producing machine uses photoelectric eye EPC in its unwinding function.
8. Our machine is the most advanced type in China, while not having the longest history. Our machines are being used by an increasing number of well-known packaging businesses to upgrade their air column cushion bag production lines.
| Model No.: | INNO-FCL-400-2A | |||
| Material: | PE low pressure material PE high pressure material | |||
| Unwinding Width | ≦800 mm | Unwinding Diameter | ≦750 mm | |
| Speed of Making Bag | 150-160 units /min | |||
| Machine Speed | 160 /min | |||
| Bag Width | ≦800 mm | Bag Length | ≦400 mm | |
| Unwinding Part | Shaftless pneumatic Cone Jacking Device | |||
| Voltage of Power Supply | 22V-380V,50HZ | |||
| Total Power | 15.5 KW | |||
| Machine Weight | 3.6 T | |||
| Machine Dimension | 7000mm*2300mm*1620mm | |||
| 12 mm thick Steel Slates for The Whole Machine | ||||
| Air Supply | Auxiliary Device | |||
