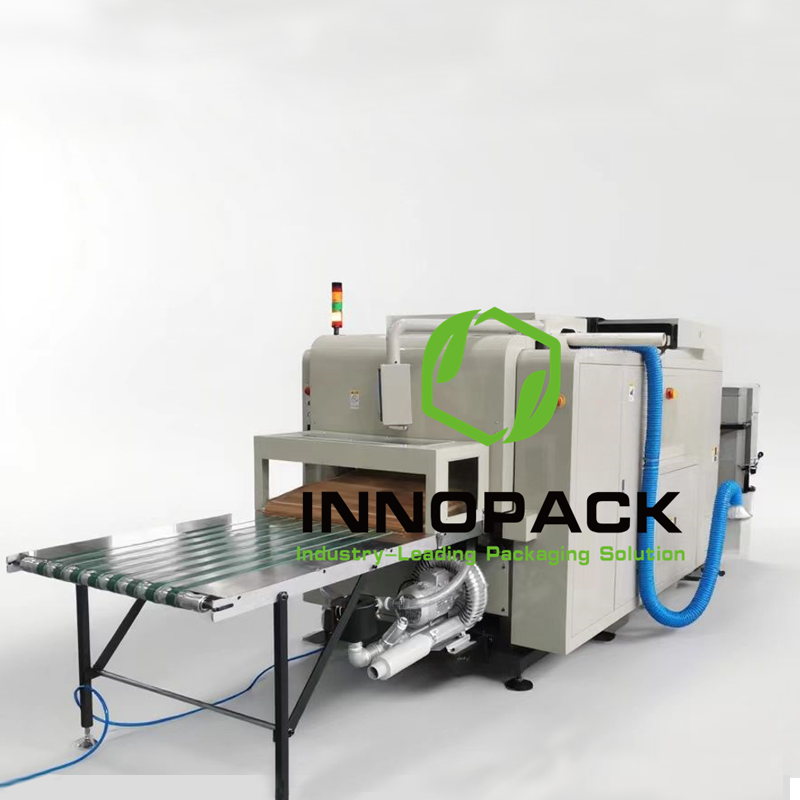

The INNO-PCL-780 Fan Folding Machine by Innopack is a high-efficiency industrial solution for converting continuous paper rolls into neatly stacked fanfold packs. Ideal for producing continuous forms, invoices, business statements, and eco-friendly paper cushions, it integrates unwinding, folding, perforating, and stacking in one process. With precise folding alignment and high-speed automation, this Z-Fold Machine reduces labor costs while delivering recyclable, biodegradable, and compostable packaging alternatives to plastic bubble wrap.
The Paper Folding Machine from InnoPack is an advanced, high-speed system designed to produce Hexcel wrap, a revolutionary eco-friendly alternative to traditional plastic packaging materials like bubble wrap. The machine is equipped with precision die-cutting technology, automatic tension control, and a PLC control system for efficient, precise operation. The result is a high-performance machine that creates expandable honeycomb structures for protecting fragile goods during shipping and handling, making it an essential tool in modern sustainable packaging solutions.
Product Introduction
The Paper Folding Machine (INNO-PCL-780) is engineered to process continuous rolls of paper and fold them into neatly stacked forms for various industries. The machine operates by feeding the paper through a series of guides and folding plates that create the accordion or Z-fold. This fold type is ideal for producing continuous computer paper, business forms, statements, invoices, and specialized tickets.
Once the paper is folded, it is stacked and can be fed into dot matrix printers or other continuous feed printers for printing or processing. The machine is designed for high-volume production, offering precise and reliable folding while maintaining speed and efficiency.
The folding process begins with the paper roll being unwound by the machine’s automatic unwinder, which is integrated with automatic tension control and web guide systems. This ensures the paper is fed smoothly into the system, avoiding misalignment or paper jams. After folding, the continuous paper stack is collected neatly by a stacker for easy handling and packaging.
This machine is not only efficient but also an environmentally responsible solution, as it offers an expandable paper wrap alternative to plastic bubble wrap, providing a different structural cushioning compared to expandable honeycomb paper. The resulting folded paper is biodegradable, recyclable, compostable, and reusable, making it a perfect choice for eco-conscious businesses.
Technical Specifications
01
Model number
PCL-780
02
Web working width
780mm
03
Maximum unwinding diameter
1000mm
04
Maximum roll weight
1000Kgs
05
Running speed
5-300m/min
06
Fold size
7.25-15 inches
07
Machine weight
5000kgs
08
Machine size
6000mm*1650mm*1700mm
09
Power supply
380V 3Phase 5 wires
10
Main motor
22KW
11
Paper loading system
Automatic hydraulic loading
12
Unwinding shaft
3 inch inflatable air shaft
13
Switch
Siemens
14
Touch screen
Mikom
15
PLC
Mikom
Key Features
High-Speed Production The Paper Folding Machine operates at speeds of up to 300 meters per minute, enabling high-volume production of folded paper in a short amount of time.
Precision Folding Equipped with precision folding plates and automatic tension control, the machine ensures that each fold is consistently accurate and aligned, improving the overall product quality.

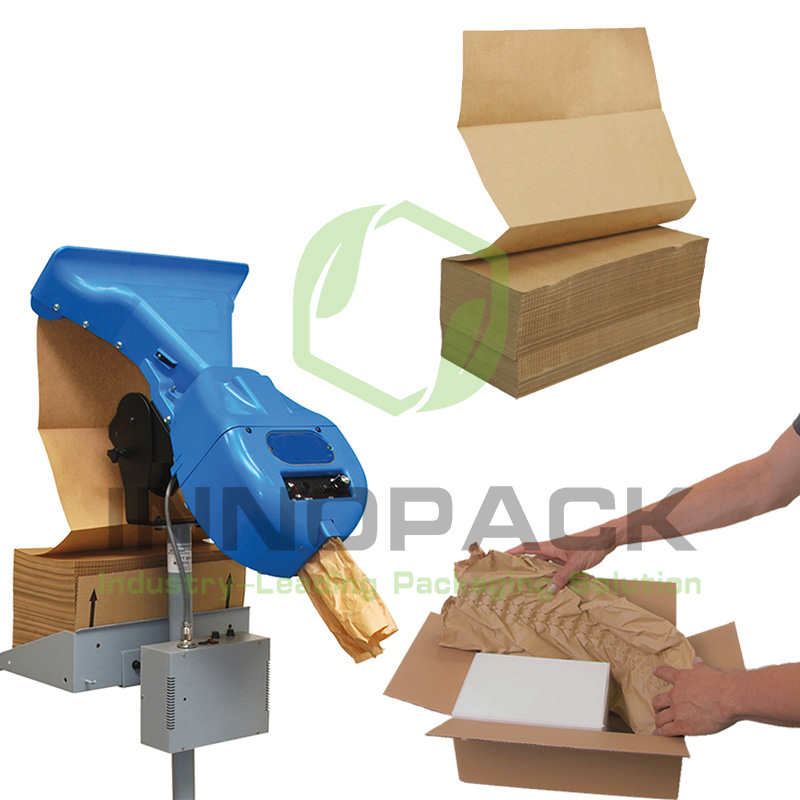

Eco-Friendly Packaging The folded paper is a biodegradable, recyclable, and compostable alternative to plastic bubble wrap, offering another sustainable option alongside our paper air pillows and paper bubble wrap for comprehensive eco-friendly cushioning.
Automatic Unwinding System The automatic unwinder with web guide systems ensures smooth paper feed, preventing misalignments and paper jams.
Versatile Applications Ideal for creating business forms, continuous computer paper, invoices, and specialized tickets, the machine offers flexibility. The fanfold paper it produces is also an excellent void-fill material for kraft paper mailers.
Increased Productivity With an integrated automatic hydraulic loading system, the machine minimizes downtime and labor costs while maximizing operational efficiency.
Efficient and Sustainable The machine’s operation helps businesses reduce waste and labor costs, while producing eco-friendly, expandable paper packaging materials for use in shipping, wrapping, and filling.
User-Friendly Interface The PLC control system with a touchscreen interface ensures that operators can easily adjust settings and monitor machine performance for seamless operation.
Applications
Business Forms: Used in industries requiring continuous forms like billing, statements, and receipts
Printing: For continuous feed printers in various industrial and commercial applications
E-commerce: Packaging solutions for fragile items, reducing reliance on plastic
Specialized Ticketing: For event tickets, boarding passes, and raffle tickets
Logistics: Packaging material for cushioning and surface protection
Why Choose Us
InnoPack is a leader in automated packaging solutions with years of expertise in designing efficient and eco-friendly machinery. The Paper Folding Machine provides a high-speed, high-volume solution for businesses that need precision folding for continuous paper forms. InnoPack ensures that each machine is built with cutting-edge technology for optimal performance, durability, and minimal environmental impact.
By choosing InnoPack and exploring InnoPack’s complete range of packaging solutions, you invest in advanced technology that enhances your production capabilities, from paper folding to hexcell paper cutting systems. Our machines are designed for efficiency, precision, and sustainability, ensuring that your business remains at the forefront of the sustainable packaging movement.
Conclusion
The Paper Folding Machine by InnoPack is an essential solution for businesses that require high-speed, precise folding and eco-friendly packaging. With its automated operation, user-friendly interface, and high-performance features, it provides businesses with the ability to produce biodegradable, recyclable, and compostable fanfold paper at high volumes. Choose InnoPack for a sustainable, efficient, and reliable packaging solution that helps eliminate the need for plastic air pillows. Discover our full suite of sustainable packaging machinery to transform your operations.
FAQs
What types of paper can the machine handle? What types of paper can the machine handle? The machine processes kraft paper (the same foundational material used in kraft paper mailer production) and other suitable materials for fanfold production, ideal for business forms, invoices, and shipping packaging.
What is the maximum production speed? The Paper Folding Machine can reach a production speed of 300 meters per minute, making it ideal for high-volume operations.
Can the machine create different sizes of folds? Yes, the machine supports fold sizes ranging from 7.25 to 15 inches, making it versatile for various applications.
What industries benefit from this machine? Industries such as e-commerce, printing, logistics, and ticketing benefit from the high-speed, eco-friendly packaging solutions provided by this machine.
Is the machine easy to operate? Yes, the machine features a user-friendly PLC control system with a touchscreen interface, making it easy for operators to control settings and monitor performance.
Field Insight
As the world moves towards more sustainable packaging solutions, businesses are increasingly turning to eco-friendly materials like fanfold paper. InnoPack’s Paper Folding Machine helps businesses meet these demands by providing a high-speed, efficient, and precise solution for continuous forms and eco-friendly packaging. By reducing the reliance on plastic-based packaging, businesses can not only contribute to sustainability but also streamline their production processes, improving overall productivity.
INNO-PCL-1200/1500H
A machine able to evolve according to the specific needs of customers and designed to maximize production. The deep experience of over 15 years in the packaging machinery industry has allowed us to create a paper bag making machine among the most functional on the market.
INNO-FCL-200-2
An entirely automated device for creating air column bag packaging materials is the Air Column Bag Film Making Machine.Made of multi-layer co-extruded film, Air Column Bags are a novel kind of cushioning packing material that, when inflated, create independent air columns that can successfully shield goods from impact, extrusion, and vibration while in transit.
Model
INNO-FCL-200-2
Material
Kraft Paper / PE-PA Film
Line Speed
Up to 25 m/min
Max. Web Width
≤ 600 mm
Control System
PLC + Inverter + Electronic Eyes
Typical Use
Air-pillow protective packaging
INNO-PCL-1000
The Single Layer Kraft Paper Mailer Machine by Innopack is an advanced automated system for producing eco-friendly, tear-resistant kraft paper mailers at high speed. Featuring PLC control, servo motor precision, and integrated unwinding, embossing, slitting, folding, sealing, and adhesive application, it delivers lightweight, customizable, and recyclable mailers. Designed for e-commerce, logistics, and express delivery, it reduces shipping costs, boosts productivity, and meets sustainable packaging demands.
Model
INNO-PCL-1000
Material
Kraft Paper
Speed
40–80 bags/min
Width Range
≤1600 mm
Control
PLC + Servo Motor + Touch Screen
Application
Paper mailer production for e-commerce and logistics
INNO-PCL-500A

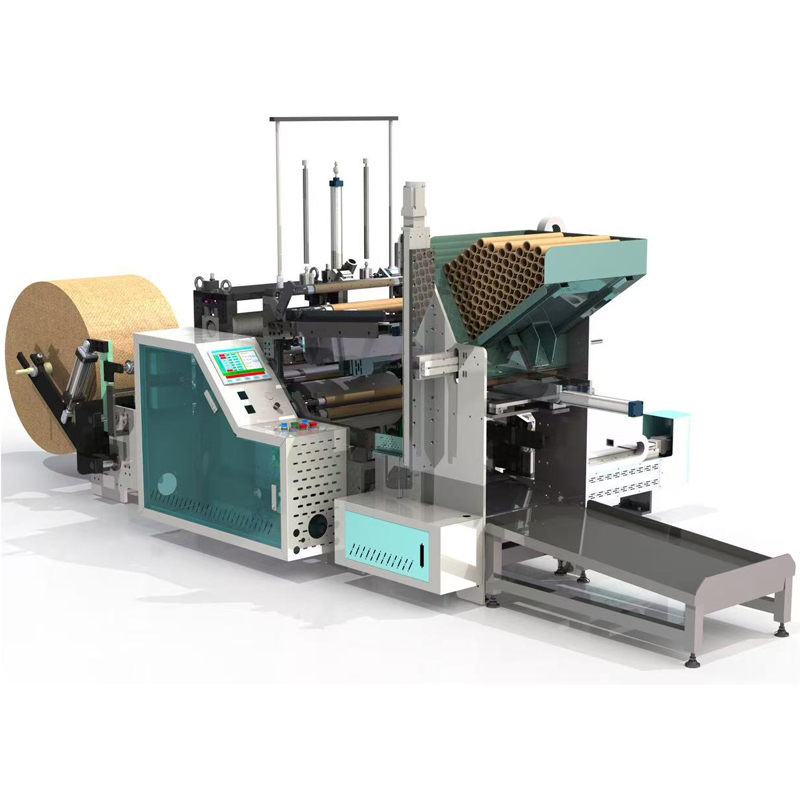

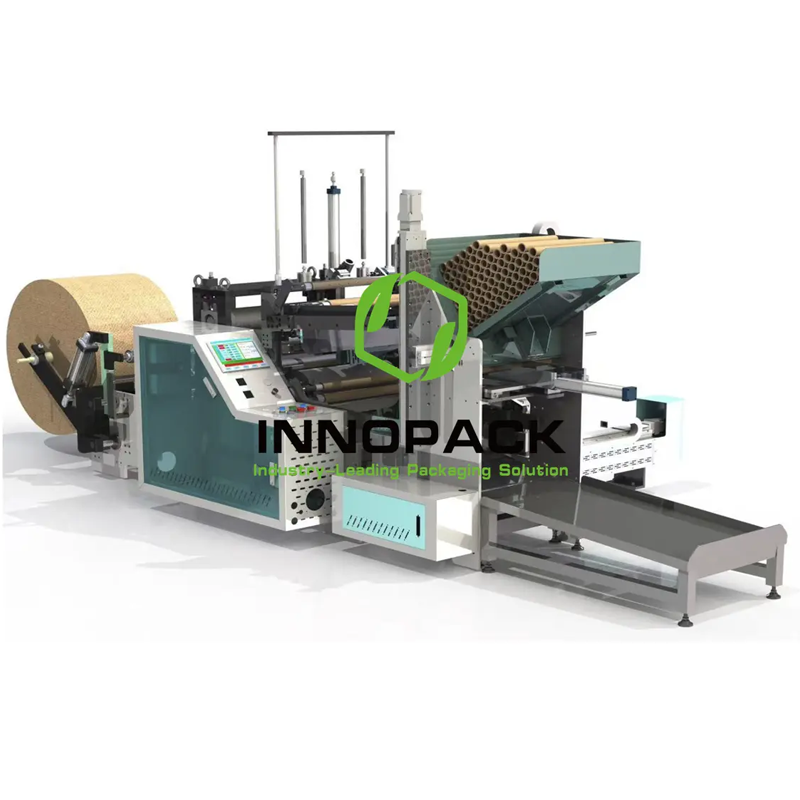

The AUTOMATIC HONEYCOMB PAPER CUTTING MACHINE efficiently converts kraft paper into eco-friendly honeycomb wrap with high-speed precision die-cutting. Featuring PLC control, HMI touch screen, and automatic unwinding, it boosts productivity, reduces labor costs, and delivers recyclable, biodegradable packaging for sustainable shipping needs.
Model
INNO-PCL-500A
Material
Kraft Paper
Speed
5–250 meters/min
Width Range
≤540 mm
Control
PLC + Inverter + Touch Screen
Application
Honeycomb paper production for protective packaging
INNO-PCL-780
INNOPACK paper fanfolding machine. Our team of specialists creates premium paper folding machines with robust, compact designs that are humidity-resistant and simple to use.The benefits and capabilities of paper folders today go beyond the fold. Folding solutions can lead to slitting, batching, perforating, scoring, gluing and other finishing options. The right machine brings with it increased production efficiency, improved quality, expanded job opportunities and decreased overall costs.
INNO-FCL-400-2A
INNOPACK introduces Paper Bubble Machine, mainly used to produce Inflatable bubble paper rolls. The bubble paper produced by this machine can be used to replace the plastic bubble wrap in packaging. It is 100% recyclable and uses degradable stretchable kraft paper as the main material.
Model
INNO-FCL-400-2A
Material
Kraft paper / PE co-extruded film
Output Speed
150–160 bags/min
Max. Bag Width
≤ 800 mm
Max. Bag Length
≤ 400 mm
Unwinding System
Shaft-less pneumatic cone + EPC web guide
Typical Use
Protective packaging, e-commerce, logistics
INNO-PCL-1200/1500H
Rapid 3 in 1 Padded Mailer Device
This machine is engineered for maximum efficiency and accuracy, ensuring it elevates your packaging abilities to an entirely new standard. Discover the next generation of e-commerce packaging now. Crafted to create honeycomb, embossed, and corrugated paper padded mailers with remarkable speed and precision, this device meets the increasing need for eco-friendly packaging within the e-commerce sector.
INNO-PCL-500A
The INNO-PCL-500A Fully Automatic Hexcell Paper Cutting Machine by Innopack is designed for producing honeycomb filter paper, wrapping paper, and kraft fish net paper from 60g to 160g. Featuring interchangeable die-cutting modules, it can create various honeycomb shapes or standard rolls. Equipped with inverter speed control, ultrasonic web guide, and magnetic powder tension system, it integrates unwinding, die-cutting, and rewinding into one automated process, ensuring precision, efficiency, and versatility for eco-friendly packaging and filter applications.
Model
INNO-PCL-500A
Material
Kraft Paper / Flame-Retardant Paper
Speed
5–250 meters/min
Width Range
≤540 mm
Control
PLC + Inverter + Touch Screen
Application
Honeycomb paper production for filtering and packaging
INNO-PCL-1200C

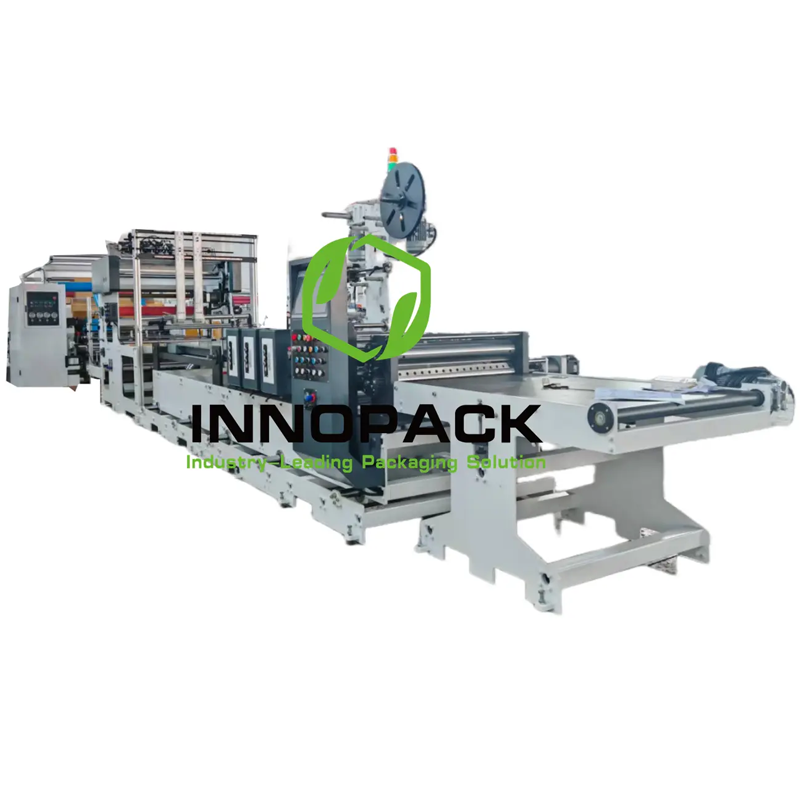

The CORRUGATED PADDED MAILER MACHINE INNO-PCL-1200C is an advanced, fully automated solution for producing eco-friendly fluted paper and corrugated mailers. Designed for e-commerce, logistics, and express delivery, it combines corrugation, lamination, sealing, and cutting into a seamless workflow, controlled by PLC and HMI systems. This high-speed machine delivers lightweight, durable, and recyclable mailers that reduce shipping costs and meet growing sustainability demands.
Model
INNO-PCL-1200C
Material
Kraft Paper
Speed
100 pcs/min (200 pcs/min double out)
Width Range
≤700 mm
Control
PLC + Inverter + Touch Screen
Application
Corrugated padded mailer production for protective packaging
INNO-FCL-200-2
The Air Column LDPE and LLDPE Film Making Machine is a fully automated device for producing air column bag packaging materials. Constructed from multi-layer co-extruded film, air column bags are a novel type of cushioning packing material that, when inflated, can successfully shield goods from impact, extrusion, and vibration while in transit.
Model
INNO-FCL-200-2
Material
LDPE / LLDPE / PE co-extruded film
Speed
160–180 units/min
Width Range
≤600 mm
Control System
PLC + Inverter + Touch Screen
Application
Air column bag production for protective packaging
INNO-PCL-500A

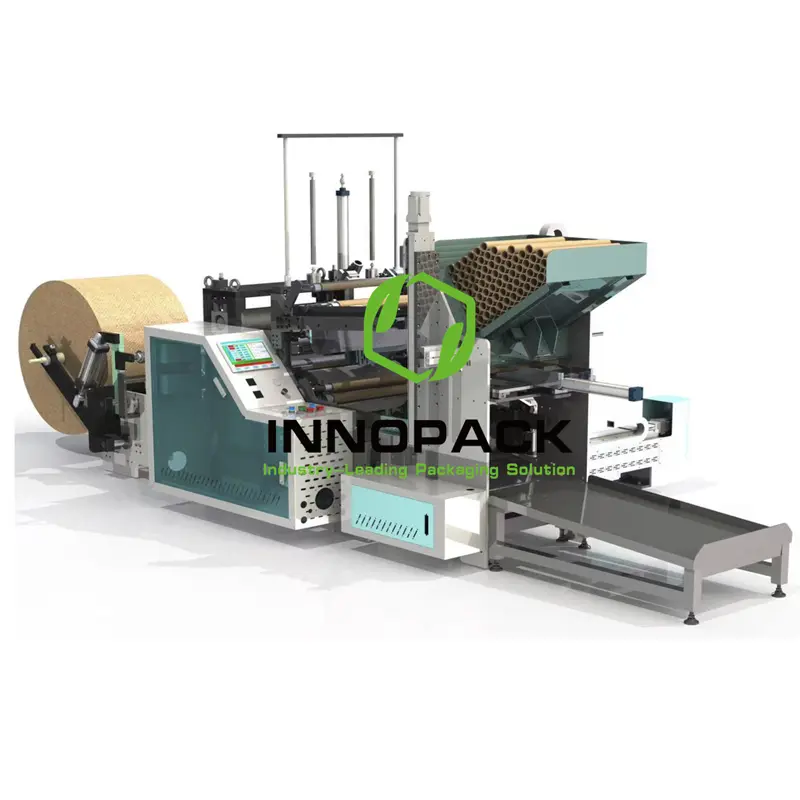

The INNO-PCL-500A Automatic Honeycomb Paper Making Machine by Innopack transforms kraft paper rolls into eco-friendly Hexcel wrap through high-speed precision die-cutting. Equipped with PLC control, HMI interface, and automatic tension systems, it produces recyclable, biodegradable, and compostable honeycomb paper that offers superior shock absorption and surface protection for e-commerce, logistics, and manufacturing packaging needs.
Model
INNO-PCL-500A
Material
Kraft Paper
Speed
5–250 meters/min
Width Range
≤540 mm
Control
PLC + Inverter + Touch Screen
Application
Honeycomb paper production for protective packaging
INNO-FCL-400-2A
One of the most reputable and trustworthy suppliers of stretch film machines, air bubble bag producing equipment, and LDPE and LLDPE air bubble machines is Innopack. With years of extensive experience in the field, we are the fastest-growing company in Asia and specialize in creating a wide range of customized air bubble film machines for the manufacturing of 2–8 layers of air bubble film.
Model
INNO-FCL-400-2A
Material
LDPE / LLDPE / PE Co-extruded Film
Production Speed
150 –160 units/min
Max. Web Width
≤ 800 mm
Control System
EPC + Frequency Inverter
Typical Use
Air-bubble rolls for protective packaging
INNO-FCL-1200
The Air Column LDPE and LLDPE bag Making Machine is a fully automated device for producing air column bag packaging materials. Constructed from multi-layer co-xtruded film, air column bags are a novel type of cushioning packing material that, when inflated, can successfully shield goods from impact, extrusion, and vibration while in transit.
Model
FCL-1200
Material
PE/PA co-extruded film
Speed
50–90 units/min
Width Range
≤1 200 mm
Control
PLC + Inverter + Touch Screen
Application
Air-column bag production for protective packaging
INNO-PCL-1000G

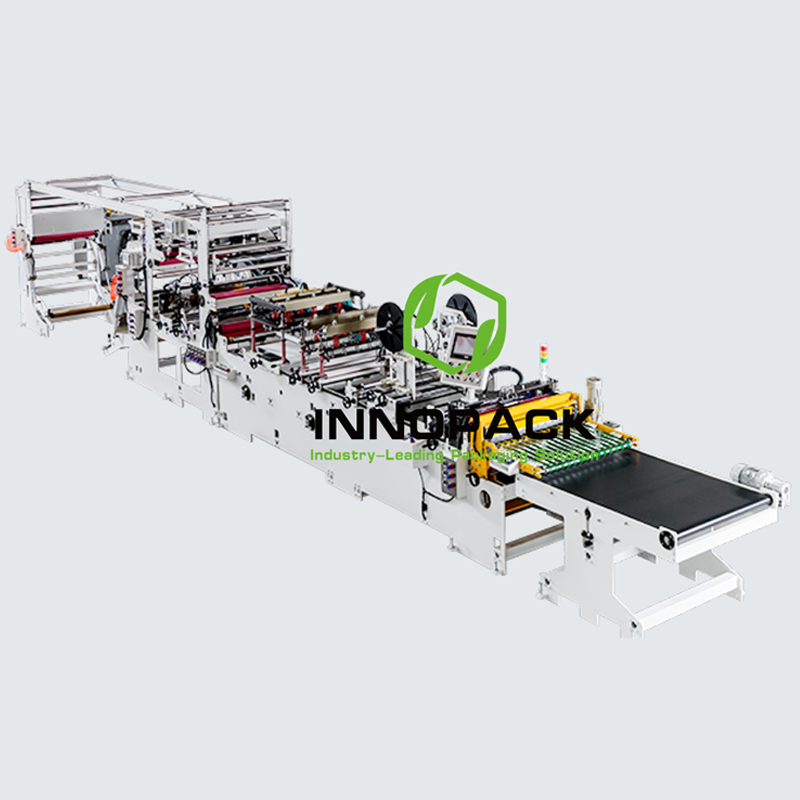

The INNO-PCL-1000G Glassine Paper Bag Machine by Innopack is an advanced automated solution for producing high-quality, eco-friendly Glassine paper envelopes and bags. Designed for industries like food, cosmetics, pharmaceuticals, and high-end retail, it features PLC precision control for unwinding, cutting, folding, and sealing. Using recyclable, biodegradable, and compostable Glassine paper, this machine delivers durable, moisture-resistant, and elegant packaging while boosting productivity and reducing labor costs.
