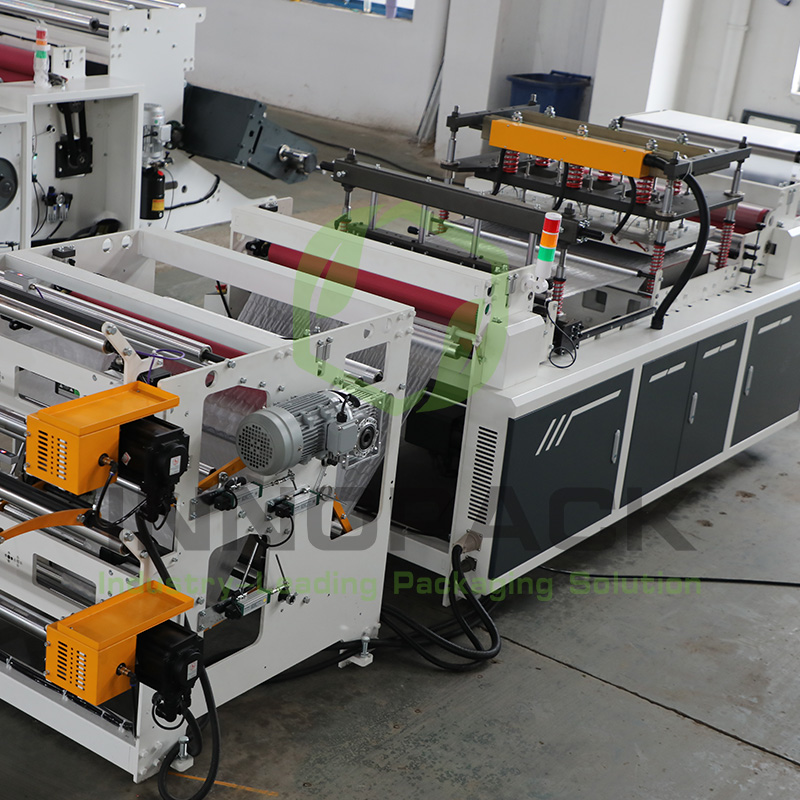

The Air Column LDPE and LLDPE Film Making Machine is a fully automated device for producing air column bag packaging materials. Constructed from multi-layer co-extruded film, air column bags are a novel type of cushioning packing material that, when inflated, can successfully shield goods from impact, extrusion, and vibration while in transit.
Model
INNO-FCL-200-2
Material
LDPE / LLDPE / PE co-extruded film
Speed
160–180 units/min
Width Range
≤600 mm
Control System
PLC + Inverter + Touch Screen
Application
Air column bag production for protective packaging
The Plastic Air Column Making Machine is an advanced automated system designed for producing air column bag packaging materials, offering superior perimeter protection compared to plastic bubble wrap and a robust plastic alternative to paper air pillows. By utilizing multi-layer co-extruded LDPE and LLDPE films, this machine efficiently creates air column rolls that provide exceptional cushioning and protection during transit. With advanced PLC control, a wide frequency inverter system, and stepless speed regulation, the machine ensures high-speed and stable production for fragile goods packaging.
Product Introduction
The Plastic Air Column Making Machine from InnoPack is designed to produce air column bags using LDPE and LLDPE co-extruded films. Air column bags are a type of inflatable cushioning material widely used in packaging to protect fragile goods from impact, vibration, and pressure during transportation. The machine is fully automated and controlled by a PLC system for ease of operation, with a touch screen interface that allows instant parameter settings.
The Plastic Air Column Making Machine operates efficiently with a high production speed of up to 25 meters per minute, offering smooth and precise manufacturing. It is perfect for businesses that require high-quality, protective packaging solutions in e-commerce, logistics, and industrial sectors.
With InnoPack’s commitment to sustainable packaging solutions, this machine offers an eco-friendly alternative to traditional plastic bubble wrap, used in our kraft paper mailers) and PE/PA co-extruded films. It complements our range of inflatable packaging, which includes plastic air pillow machines.
Technical Specifications
Model No.:
INNO-FCL-200-2
Material:
PE low pressure material PE high pressure material
Unwinding Width
≦600 mm
Unwinding Diameter
≦750 mm
Speed of Making Bag
160-180 units /min
Machine Speed
190 /min
Bag Width
≦600 mm
Bag Length
≦600 mm
Unwinding Part
Shaftless pneumatic Cone Jacking Device
Voltage of Power Supply
22V-380V,50HZ
Total Power
12.5 KW
Machine Weight
3.2T
Machine Dimension
6660mm*2480mm*1650mm
12 mm thick Steel Slates for The Whole Machine
Air Supply
Auxiliary Device
Key Features
Advanced PLC Control and Inverter System The Plastic Air Column Making Machine uses a PLC system to control all functions and an inverter for precise speed regulation, ensuring smooth production of high-quality air column bags. This level of automation is a hallmark of InnoPack machinery, from this machine to our automated honeycomb paper systems.

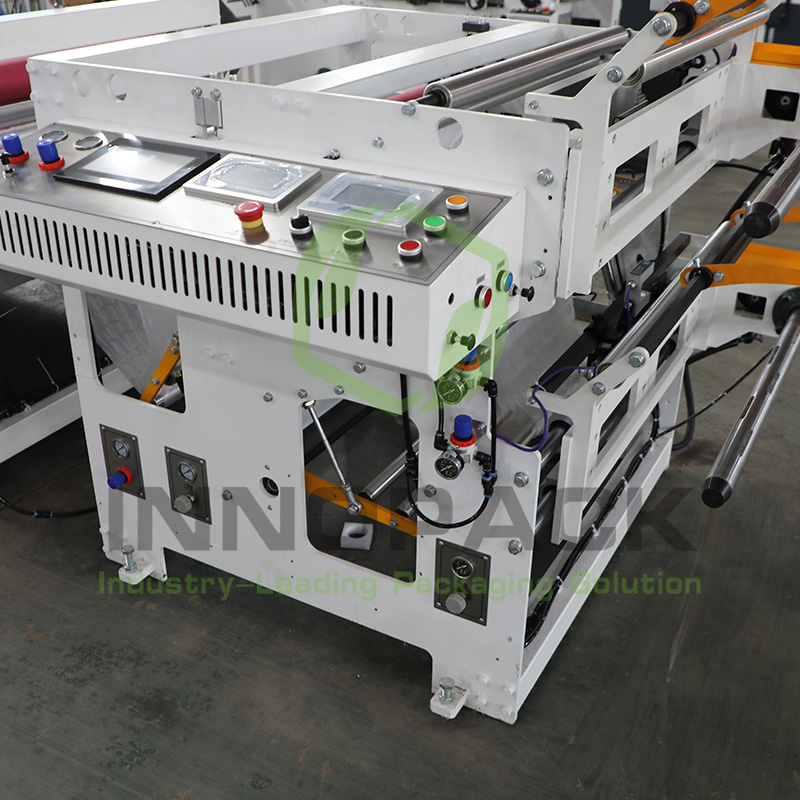

Instantaneous Parameter Settings With a touch-screen interface, the machine offers real-time adjustments to production parameters, ensuring accurate and smooth operation.
Wide Frequency Range of Inverters The wide frequency range of inverters provides stepless speed changes, allowing the machine to adapt to various production needs efficiently.

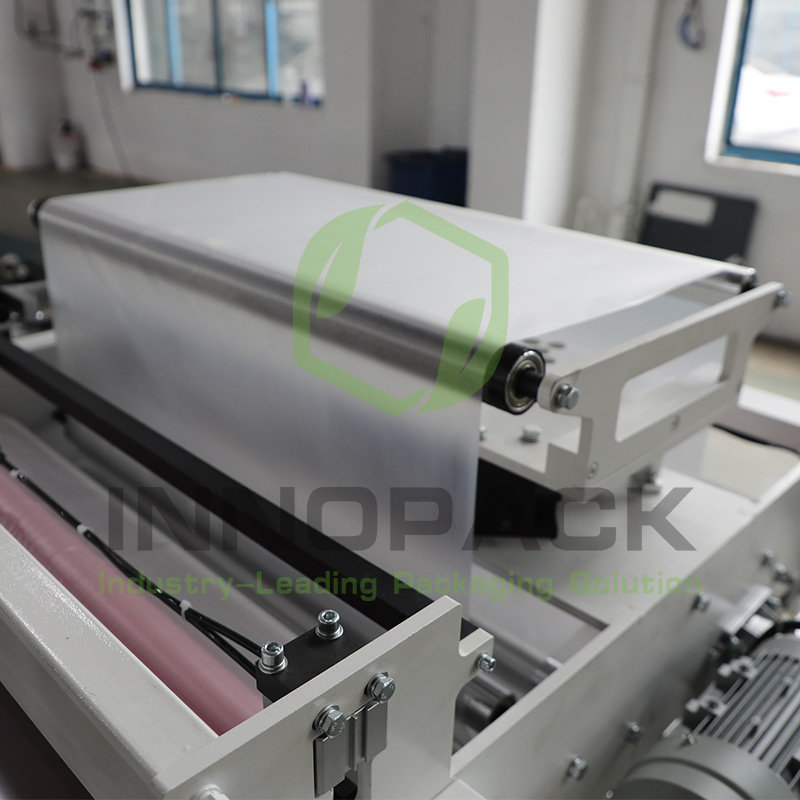

Air Expansion Shaft Roll Holders The release and pick-up motors utilize air expansion shafts, making it easier to load and unload the rolls, improving production flow and efficiency.
High-Speed Production The machine can operate at speeds of up to 25 meters per minute, ideal for high-throughput production environments in e-commerce fulfillment and logistics.
Durable and Eco-Friendly Materials This machine supports the use of Kraft paper and PE/PA co-extruded films, making it suitable for environmentally conscious businesses. For clients requiring fully paper-based cushioning, we offer our dedicated paper air bubble making machine.
Reputable Electrical Components All electrical components in the machine come from well-known brands, ensuring high stability and longevity for sustained use in demanding production environments.

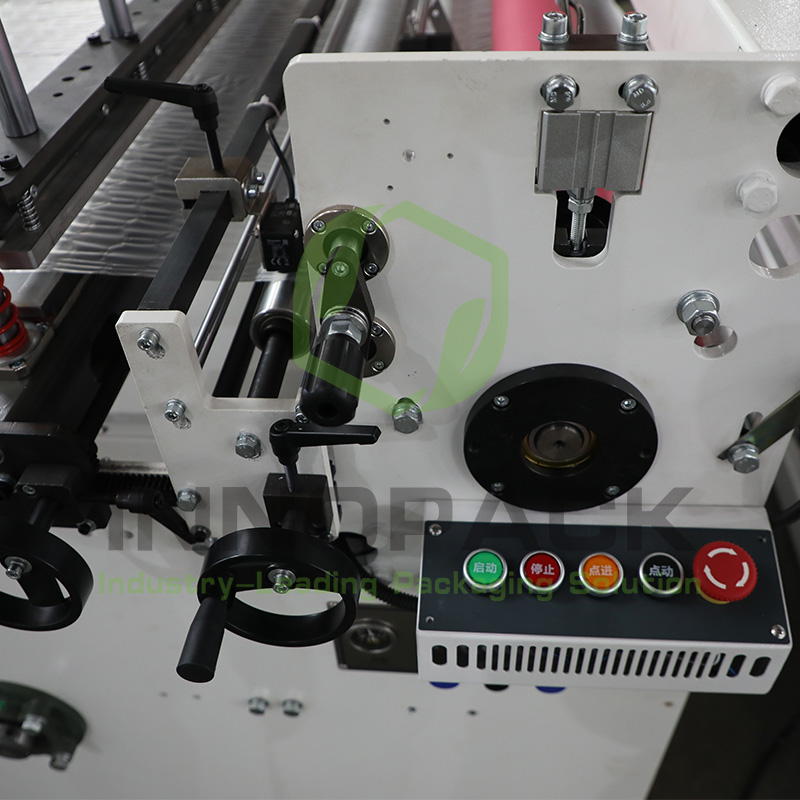

Safety Features The machine comes with a strict safety system, including emergency stop buttons, protective barriers, and automatic shutdown when barriers are opened to prevent damage.
Applications
E-commerce packaging for fragile goods such as electronics, glassware, and cosmetics
Protective packaging for industrial shipments
Inflatable cushioning materials for delicate items in transit
Air column padded mailers (which can be integrated with the output of our corrugated padded mailers and glassine paper mailers for superior protection) and protective packaging for small and large businesses.
Sustainable packaging solutions in logistics and retail industries
Why Choose Us
InnoPack is a leader in the packaging machinery industry, specializing in the design and manufacture of high-performance Plastic Air Column Making Machines. With decades of experience and a commitment to innovation, InnoPack ensures that its machines are designed for maximum efficiency, stability, and ease of use. Our R&D department is constantly working to meet the growing demands for sustainable and protective packaging solutions, helping businesses transition from traditional packaging to eco-friendly alternatives.
By choosing InnoPack and exploring InnoPack’s complete product line, you are investing in a reliable and long-term solution for your packaging needs, from air columns to honeycomb paper cutting solutions. Our machines are equipped with state-of-the-art technology, offering seamless production, high-speed performance, and the ability to create top-quality protective packaging for fragile goods.
Conclusion
The Plastic Air Column Making Machine by InnoPack offers a highly efficient, automated solution for producing air column bags used in protective packaging. With its PLC control system, high-speed operation, and eco-friendly materials, the machine provides businesses with a reliable and sustainable packaging solution. Choose InnoPack for all your inflatable packaging needs, including the plastic air pillow making machine and plastic air bubble making machine, and enjoy high-quality, cost-effective, and environmentally friendly solutions for your fragile goods protection.
FAQs
What materials are compatible with the machine? The machine can process LDPE, LLDPE, and PE/PA co-extruded films, as well as Kraft paper. For businesses looking to transition entirely to paper-based air cushioning, our paper air pillow making machine is the ideal solution.
Can the machine handle small production runs? Yes, the Plastic Air Column Making Machine is versatile and can handle both high-volume production and smaller, custom runs.
How fast is the production rate? The machine can produce up to 25 meters per minute of air column film, depending on the material and configuration.
Is the machine easy to operate? Yes. The PLC control system and touch-screen interface make it simple to operate, with intuitive settings for adjusting production parameters.
What industries use air column bags? Air column bags are used in e-commerce, logistics, electronics, automotive, and retail for packaging fragile items.
Field Insight
As the demand for sustainable and protective packaging solutions continues to grow, businesses are increasingly turning to air column bags as a reliable alternative to traditional cushioning materials. InnoPack has invested in the development of cutting-edge technology to provide high-quality, eco-friendly packaging solutions that meet the needs of various industries. Our machines, from this air column machine to the automatic honeycomb paper making machine, are engineered for high-speed, efficient production. Discover our broader range of sustainable packaging machinery to meet all your protective packaging needs.
INNO-FCL-1200
The Air Column LDPE and LLDPE bag Making Machine is a fully automated device for producing air column bag packaging materials. Constructed from multi-layer co-xtruded film, air column bags are a novel type of cushioning packing material that, when inflated, can successfully shield goods from impact, extrusion, and vibration while in transit.
Model
FCL-1200
Material
PE/PA co-extruded film
Speed
50–90 units/min
Width Range
≤1 200 mm
Control
PLC + Inverter + Touch Screen
Application
Air-column bag production for protective packaging
INNO-PCL-1000G
The INNO-PCL-1000G Glassine Paper Bag Machine by Innopack is an advanced automated solution for producing high-quality, eco-friendly Glassine paper envelopes and bags. Designed for industries like food, cosmetics, pharmaceuticals, and high-end retail, it features PLC precision control for unwinding, cutting, folding, and sealing. Using recyclable, biodegradable, and compostable Glassine paper, this machine delivers durable, moisture-resistant, and elegant packaging while boosting productivity and reducing labor costs.
Model
INNO-PCL-1000G
Material
Glassine Paper / Kraft Paper
Speed
30–130 meters/min
Width Range
≤900 mm
Control
PLC + Inverter + Touch Screen
Application
Glassine paper mailer production for eco-friendly packaging
INNO-PCL-1200C
The CORRUGATED PADDED MAILER MACHINE INNO-PCL-1200C is an advanced, fully automated solution for producing eco-friendly fluted paper and corrugated mailers. Designed for e-commerce, logistics, and express delivery, it combines corrugation, lamination, sealing, and cutting into a seamless workflow, controlled by PLC and HMI systems. This high-speed machine delivers lightweight, durable, and recyclable mailers that reduce shipping costs and meet growing sustainability demands.
Model
INNO-PCL-1200C
Material
Kraft Paper
Speed
100 pcs/min (200 pcs/min double out)
Width Range
≤700 mm
Control
PLC + Inverter + Touch Screen
Application
Corrugated padded mailer production for protective packaging
INNO-FCL-200-2

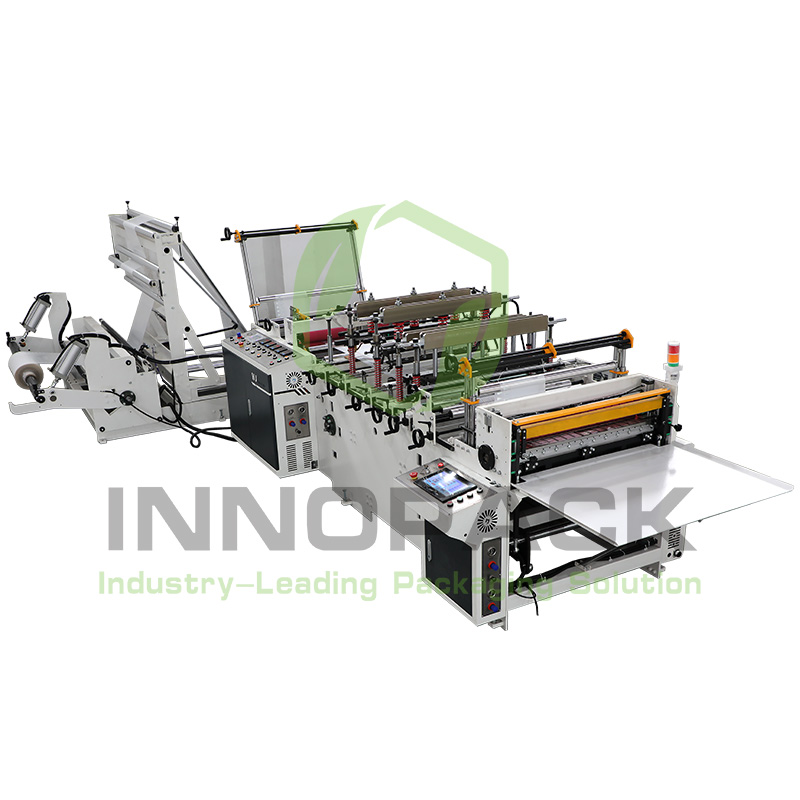

An entirely automated device for creating air column bag packaging materials is the Air Column Bag Film Making Machine.Made of multi-layer co-extruded film, Air Column Bags are a novel kind of cushioning packing material that, when inflated, create independent air columns that can successfully shield goods from impact, extrusion, and vibration while in transit.
Model
INNO-FCL-200-2
Material
Kraft Paper / PE-PA Film
Line Speed
Up to 25 m/min
Max. Web Width
≤ 600 mm
Control System
PLC + Inverter + Electronic Eyes
Typical Use
Air-pillow protective packaging
INNO-FCL-400-2A
INNOPACK introduces Paper Bubble Machine, mainly used to produce Inflatable bubble paper rolls. The bubble paper produced by this machine can be used to replace the plastic bubble wrap in packaging. It is 100% recyclable and uses degradable stretchable kraft paper as the main material.
Model
INNO-FCL-400-2A
Material
Kraft paper / PE co-extruded film
Output Speed
150–160 bags/min
Max. Bag Width
≤ 800 mm
Max. Bag Length
≤ 400 mm
Unwinding System
Shaft-less pneumatic cone + EPC web guide
Typical Use
Protective packaging, e-commerce, logistics
INNO-PCL-500A
The INNO-PCL-500A Fully Automatic Hexcell Paper Cutting Machine by Innopack is designed for producing honeycomb filter paper, wrapping paper, and kraft fish net paper from 60g to 160g. Featuring interchangeable die-cutting modules, it can create various honeycomb shapes or standard rolls. Equipped with inverter speed control, ultrasonic web guide, and magnetic powder tension system, it integrates unwinding, die-cutting, and rewinding into one automated process, ensuring precision, efficiency, and versatility for eco-friendly packaging and filter applications.
Model
INNO-PCL-500A
Material
Kraft Paper / Flame-Retardant Paper
Speed
5–250 meters/min
Width Range
≤540 mm
Control
PLC + Inverter + Touch Screen
Application
Honeycomb paper production for filtering and packaging
INNO-PCL-780
The INNO-PCL-780 Fan Folding Machine by Innopack is a high-efficiency industrial solution for converting continuous paper rolls into neatly stacked fanfold packs. Ideal for producing continuous forms, invoices, business statements, and eco-friendly paper cushions, it integrates unwinding, folding, perforating, and stacking in one process. With precise folding alignment and high-speed automation, this Z-Fold Machine reduces labor costs while delivering recyclable, biodegradable, and compostable packaging alternatives to plastic bubble wrap.
Model
INNO-PCL-780
Material
Kraft Paper
Speed
5–300 meters/min
Width Range
≤780 mm
Control
PLC + Inverter + Touch Screen
Application
Paper folding for business forms and packaging
INNO-PCL-500A
The AUTOMATIC HONEYCOMB PAPER CUTTING MACHINE efficiently converts kraft paper into eco-friendly honeycomb wrap with high-speed precision die-cutting. Featuring PLC control, HMI touch screen, and automatic unwinding, it boosts productivity, reduces labor costs, and delivers recyclable, biodegradable packaging for sustainable shipping needs.
Model
INNO-PCL-500A
Material
Kraft Paper
Speed
5–250 meters/min
Width Range
≤540 mm
Control
PLC + Inverter + Touch Screen
Application
Honeycomb paper production for protective packaging
INNO-PCL-1200/1500H
A machine able to evolve according to the specific needs of customers and designed to maximize production. The deep experience of over 15 years in the packaging machinery industry has allowed us to create a paper bag making machine among the most functional on the market.
INNO-PCL-1000
The Single Layer Kraft Paper Mailer Machine by Innopack is an advanced automated system for producing eco-friendly, tear-resistant kraft paper mailers at high speed. Featuring PLC control, servo motor precision, and integrated unwinding, embossing, slitting, folding, sealing, and adhesive application, it delivers lightweight, customizable, and recyclable mailers. Designed for e-commerce, logistics, and express delivery, it reduces shipping costs, boosts productivity, and meets sustainable packaging demands.
Model
INNO-PCL-1000
Material
Kraft Paper
Speed
40–80 bags/min
Width Range
≤1600 mm
Control
PLC + Servo Motor + Touch Screen
Application
Paper mailer production for e-commerce and logistics
INNO-PCL-780
INNOPACK paper fanfolding machine. Our team of specialists creates premium paper folding machines with robust, compact designs that are humidity-resistant and simple to use.The benefits and capabilities of paper folders today go beyond the fold. Folding solutions can lead to slitting, batching, perforating, scoring, gluing and other finishing options. The right machine brings with it increased production efficiency, improved quality, expanded job opportunities and decreased overall costs.
INNO-FCL-400-2A
One of the most reputable and trustworthy suppliers of stretch film machines, air bubble bag producing equipment, and LDPE and LLDPE air bubble machines is Innopack. With years of extensive experience in the field, we are the fastest-growing company in Asia and specialize in creating a wide range of customized air bubble film machines for the manufacturing of 2–8 layers of air bubble film.
Model
INNO-FCL-400-2A
Material
LDPE / LLDPE / PE Co-extruded Film
Production Speed
150 –160 units/min
Max. Web Width
≤ 800 mm
Control System
EPC + Frequency Inverter
Typical Use
Air-bubble rolls for protective packaging
INNO-PCL-1200/1500H

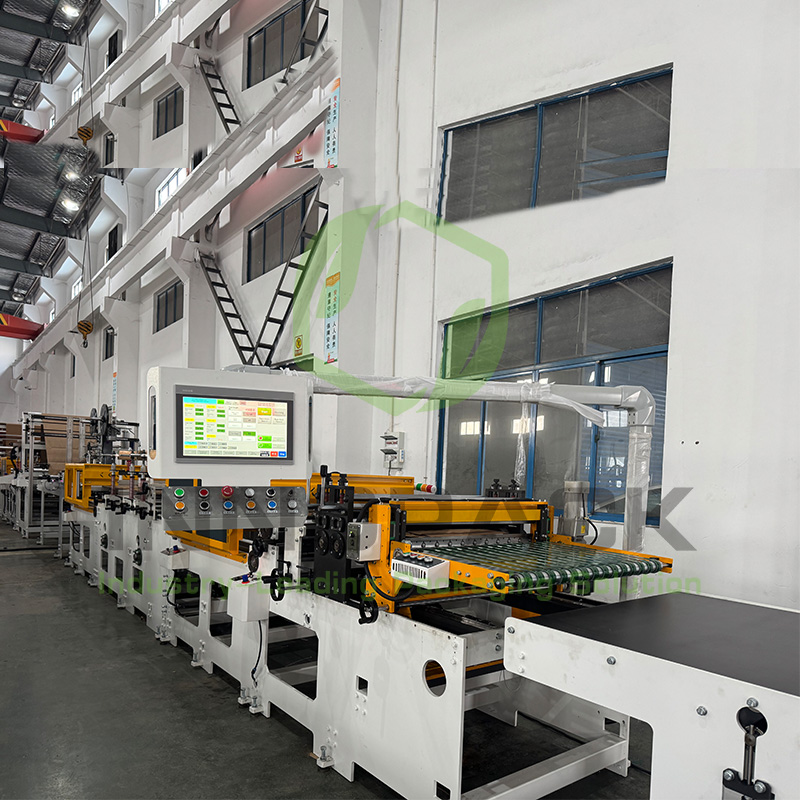

Rapid 3 in 1 Padded Mailer Device
